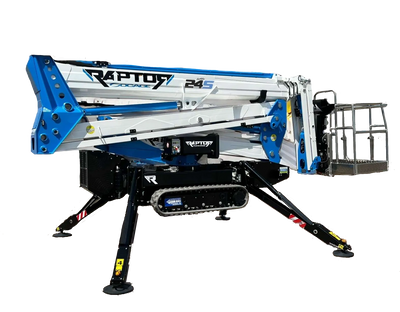

PR24
Introducing PR24.
This advanced tracked aerial platform is engineered to meet the demanding requirements of industry professionals.
If you’re looking for dependable access solutions in challenging environments and confined spaces, 830mm wide, you need to look at the PR24.
A sophisticated machine that achieves an impressive maximum working height of 23.8 meters, it also provides a substantial maximum lateral outreach of 11 meters.
The platform accommodates a load capacity of 230 kg, enough for two operators plus their essential materials. Optimal productivity and extreme versatility .
PR24 redefines mobility towable by any standard work vehicle with a 3.5-ton capacity, it goes wherever the job takes you."
Model
Raptor 24S
Working Height
23.8 Meters
Max Radius
11 Meters
Weight Capacity (Platform)
230kg
Further Specifications:
Outriggers: Z+Z
Basket Size: 1400 x 700 x 1100mm
Controls: Electro - Hydraulic
Turret Rotation: 380°
GVW: 2.7 Ton
Lifting Hook: 230 kg
Platform Rotation: 60° + 60°
Size: Refer to data link
PR40

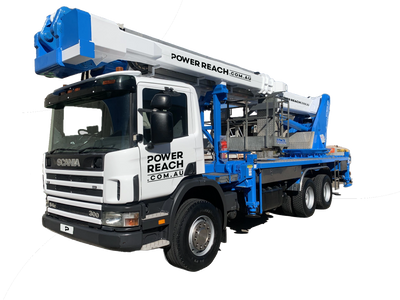

The 40m Cela TJ400 is one of our premier units, featuring a 300kg basket capacity and an impressive 22m side reach.
This versatile machine is a top choice among telecommunications and energy sectors, consistently proving its reliability and efficiency.
Renowned for its performance, the Cela TJ400 is a go-to solution for tackling complex tasks with ease and precision.
Truck Type
Scania 94c
Model
Cela TJ400
Working Height
40 Meters
Max Radius
22.5 Meters
Weight Capacity (Platform)
300kg
Further Specifications:
Vehicle Weight: 26.5 tonne
Vehicle Length: 10m
Vehicle Width: 2.4m
Vehicle Travel Height: 4m
Outrigger Spread: 5m x 5m
Platform Size: 2.2 - 3.2m (L) x .79m (W) x 1.15m (H)
Platform Rotation: 160°
Turntable Rotation: 360°
PR51
Engineered for excellence, the PR51 sets a new benchmark in aerial access. Featuring an impressive 51-meter working height, 32-meter side reach, and a robust 600kg basket capacity, it’s built to conquer the most demanding tasks with ease.
Powered by a SCANIA 6x6 chassis, the PR51 combines off-road capability with unmatched stability. Developed on the foundation of German engineering precision, this platform delivers superior strength, reliability, and accuracy for high-stakes operations across construction, maintenance, and industrial applications.
Whether you're reaching new heights or spanning complex structures, the PR51 is your ultimate partner in performance.
Truck Type
Scania
Model
Ruthmann T510HF
Working Height
51 Meters
Max Radius
32 Meters
Weight Capacity (Platform)
600kg
Further Specifications:
Vehicle Length: 10.5m
Vehicle Width: 2.5m
Vehicle Travel Height: 3.87m
Outrigger Spread: 6.50m
Platform Size: 2.4 - 3.8m x 0.97m
Range Of Rotation: 500°
Working Height Underground: 12m
